Automatic Canned Fish Seaming Machine for Sardines/Tuna
Automatic Fish Can Seaming Machine
Application

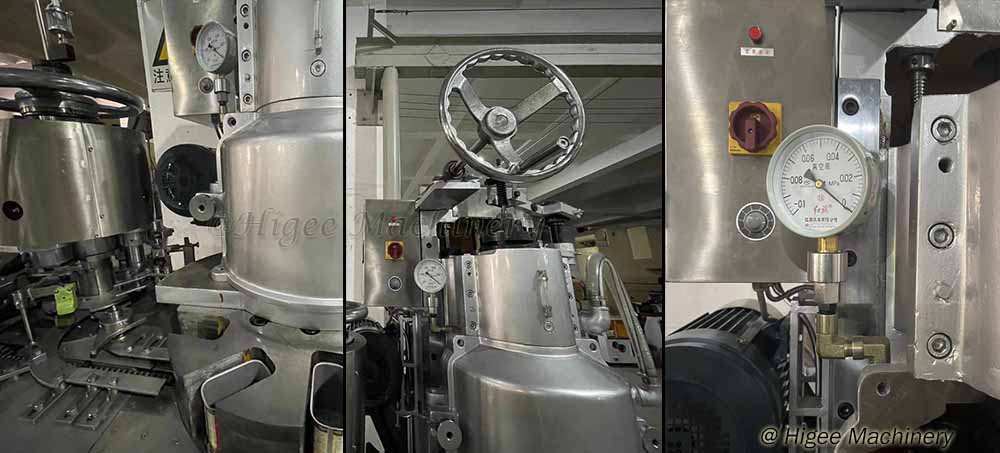

This is automatic vacuum seaming machine with 4 pre-seaming heads and one main vacuum seaming head, the seamer is equipped with a pre-sealing mechanism with synchronous rotation. it’s widely used for vacuum seaming of vavious specification of special -shaped canned such as oval can,rectangular can,square can and other cans etc.
This seaming machine is suitable for canned such as sardines,tuna,mackerel,croaker,octopus,seafood and luncheon meat food cans etc, the seaming machine is a combination of pre-seaming and vacuum seaming, it greatly improves the overall stability of the transport process of the machine’s finished cans. The soup in the can will not splash, thus ensuring the weight of the can.
To meet the different requirements of users, it is suitable for small and medium-sized enterprises,applicable industry:fish canned factory/meat canned factory/seafood factory.
Main Technical Parameters:
|
Name |
Automatic canned vacuum seaming machine |
|
Suitable for |
rectangular can,square can,oval can,special shape |
|
Diagonal of canned |
50mm -110 mm (can be customized) |
|
Height of canned |
25~160mm (can be customized) |
|
Production capacity |
Stable speed:100 cans per minute |
|
Main motor power |
9.5kw |
|
Height from ground to conveyor belt |
800mm |
|
Vacuum degree |
59.995～66.661 KPa |
|
Machine weight |
2500kg |
|
Dimension |
2350×1200×1850 |
