2000BPH Water Split Filling Line
Process
Bottle blowing - Water treatment - Automatic Filling - Capping - Manually put the label - shrink tunnel do label shrinkage - Laser printing - film wrap packing - Output

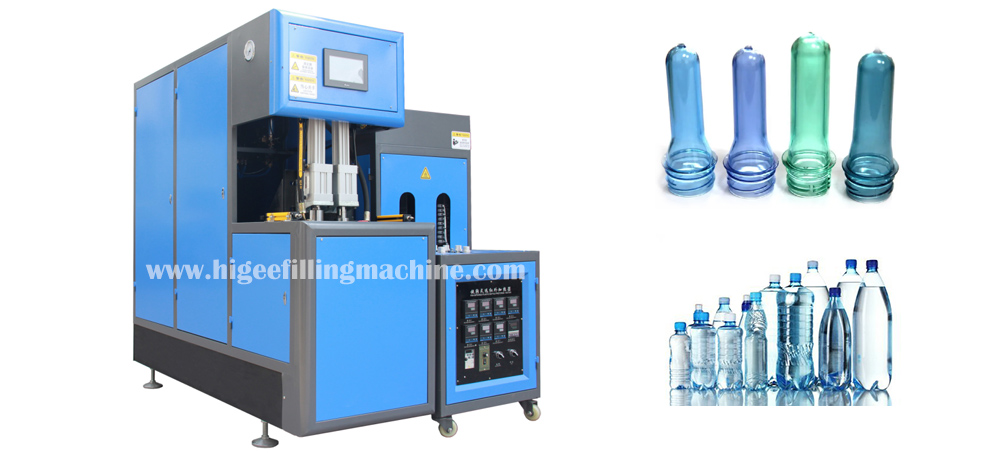

Bottle Blowing Machine Unit
Main technical parameter
|
Items |
Parameters |
|
Number of cavities |
2 |
|
Theoretical output |
600-900 BPH |
|
Max. Volume |
2 L |
|
Neck size |
18-100 mm |
|
Max. Bottle dia. |
105 mm |
|
Max. Bottle height |
340 mm |
|
Mold thickness |
70-230 mm |
|
Open stroke |
160 mm |
|
Rated power |
22 Kw |
|
Power consumption |
5-10 Kw |
|
Blower size |
1.6*0.6*1.55m |
|
Heater size |
1.7*0.6*1.35 m |
|
Weight |
850 kg |
Details
Accessory equipments
Water Treatment Unit (1 ton/hr, full SUS304)
Equipment list
|
Items |
Parameters |
|
Raw water tank |
2000L, SUS 304 |
|
Water Pump |
|
|
Quartz sand filter with filter material |
¢320×H2200mm |
|
Activated carbon filter with filter material |
¢320×H2200mm |
|
Sodium ion filter with filter material |
¢320×H2200mm |
|
Precision filter |
¢280×12200mm |
|
Reverse osmosis device |
|
|
UV sterilizer |
|
|
Ozone generator |
|
|
Stainless Steel Tank with Level Control |
2000L, SUS 304 |
Split Bottle Washing - Filling - Capping Unit
Technical parameter - Washing Machine
|
Items |
Parameters |
|
Washing head |
12 |
|
Capacity |
1000-2000 BPH (@500ml, speed can be adjustable) |
|
Power |
0.75 Kw |
|
Dimension |
1200*1120*1800mm (L*W*H) |
|
Weight |
550 kg |
|
Operation panel |
Button control speedometer |
Technical parameter - Filling Machine
|
Items |
Parameters |
|
Filling head |
12 |
|
Capacity |
1000-2000 BPH (@500ml, speed can be adjustable) |
|
Power |
0.75 Kw |
|
Dimension |
1200*1120*1800mm (L*W*H) |
|
Weight |
550 kg |
|
Operation panel |
Button control speedometer |
|
Material |
SUS304 in contact with liquid |
Technical parameter - Capping Machine
|
Items |
Parameters |
|
Capping head |
1 |
|
Capacity |
1500-2000 BPH (@500ml, speed can be adjustable) |
|
Power |
0.75 Kw |
|
Dimension |
900*700*1900mm (L*W*H) |
|
Weight |
350 kg |
|
Suitable cap |
Screw type cap |
Packing Unit- Inkjet Printer
*photo only for reference
Technical parameter
|
Items |
Parameters |
|
Inkjet printing type |
TIJ 2.5 |
|
Printing head quantity |
1 printing head |
|
Printing height |
12.7mm |
|
Printing speed |
40m/min |
|
Interface |
USB/ Ethernet |
|
Print data |
Text, Lot Number, Phase III, Barcode, Picture |
|
Power |
110-220VAC 50/60Hz |
|
Operational Reliability |
Temperature 5℃-35℃ / Humidity 10%-90% |
|
Power Consumption |
120W |
|
Operation panel |
7 inch touch screen |
|
Conveyor length |
1.5m |
Shrink tunnel and steam generator
Technical parameter
|
Items |
Parameters |
|
Input power |
Single phase 220V 50HZ |
|
Input power |
0.18KW(shrink tunnel)+18kw(steam generator) |
|
Dimensions (mm)-shrink tunnel |
1000L*400W*1550H |
|
Dimensions (mm)-steam generator |
580L*680W*1450H |
|
Weight |
60Kg(shrink tunnel)+80kg(steam generator) |
Film wrap packing machine
Technical parameter
|
Items |
Parameters |
|
Power supply |
220V 50-60HZ |
|
Power |
15 Kw |
|
Maximum package size |
L550×W440×H380mm |
|
Packing speed |
0-8 packages/min |
|
Max. Sealing size |
650mm |
|
Working air pressure |
5-7kg/cm² |
