Pill, Capsule and Tablet Filling Machine

Short Description:

This filling machine is used for pill, capsule and tablet counting, filling and capping. The filling capacity can be customized. Client can choose to equip with unscrambler, inserter, counter, check weigher, capper, sealer, labeler and cartoner.


  • Supply Ability: 30 Sets/Month
  • Trade term:: FOB, CNF, CIF, EXW
  • Port:: Shanghai port in China
  • Payment term:: TT, L/C
  • Production lead time:: Normally 30-45 days, it should be reconfirmed.
  • Supply Ability: 30 Sets/Month
  • Trade term: FOB,CNF,CIF,EXW
  • Port: Shanghai port in China
  • Payment term:: TT, L/C
  • Production lead time: Normally 30-45 days, it should be reconfirmed.
  • Product Detail

    Product Tags

    tablet and capsule medicine-1

    Automatic Pill, Capsule and Tablet Counting Filling and Capping Machine Line

    8- 3 Pill & Capsule & Tablet filling machine 394

    The machine uses the most advanced anti-high dust electronic counting technology. Tablets (including shaped tablets), hard capsules, soft capsules (transparent, opaque) pellets, and other solid particles ranging in size from 3 to 12 mm can be counted and dispensed. Can be bottled, boxed, bagged. Fully compliant with GMP requirements, especially suitable for research institutions, hospitals, new small pharmaceutical factories, health products factories.

    The filling capacity can be customized. Client can choose to equip the tablet and capsule filling machine line with unscrambler, desiccant inserter, counter, check weigher, capper, sealer, labeler and cartoner.

    200BPM Tablet bottle packaging line

    Pill / Capsule / Tabelt Counting and Filling Machine Line
    The Counter will fulfill all your needs of tablet / capsule counting and filling. It enables near all possibility.
    ● 100% counting accuracy guaranteed.
    ● Having highly speed
    ● Counting quantity can be set from 3pieces to 3000 pieces per bottle.
    ● The design of heavy duty stainless steel with polished welds on all horizontal surfaces prevents dust building up in operation. Seamless design prevents potential product contamination.
    ● This machine is equipped with advanced detecting system including of a dust compensator and built-in spike controller. The sensor adjusts its sensitivity automatically to offset the gradual accumulation of "dust" on the sensor window.
    ● Product contact materials are all made of 316,304 Stainless Steel or PE.
    ● Auto rejection system removes incorrectly-filled containers off the conveyor and resets the correct counting amount. This machine is programmable to stop immediately when containers are incorrectly filled.
    ● Meet cGMP or FDA and CE requirements.

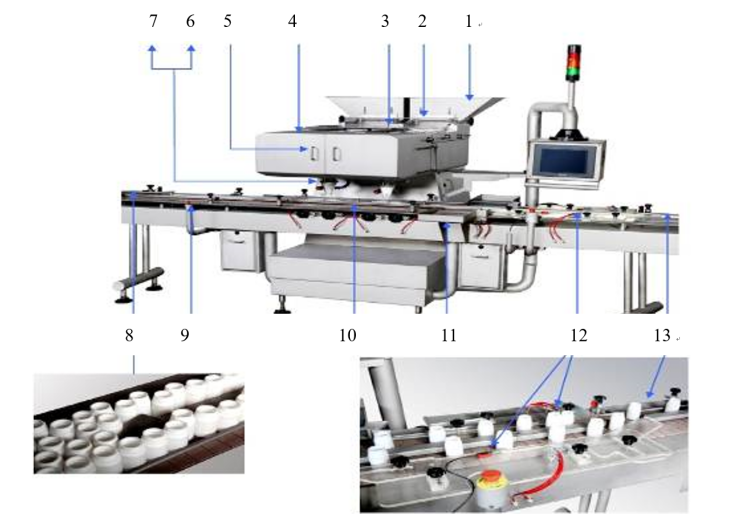

    The machine structure as below:

    8- 3 Pill & Capsule & Tablet filling machine 314 (4)

    1. Feed bin(w/I windows)

    2. Bin stopper

    3. Vibrate device

    4. Detecting(w/i sensor)

    5. Door

    6. Nozzle

    7. Control plate

    8. Flowing track

    1. Refuse platform

    10. Bottle position control

    11. Plat of defective bottle

    12. Rail sensor

    1. Rail bar


    Component function:
    1) The product (pill,tablet,capsule etc)that you want to count is feed into the feed bin.Then Operator can be observed through windows inside of feed bin.
    2) The bin stopper is adjustable,and control the flowing of product is from Feed bin to vibrator plate.
    3) The vibrator device is composed of three vibrator plat-Front plat,Middle plat and Behind plat.The function of three plats effectively separate among products to form the stable flowing of product.And the dusting device is equipped under the flowing detecting and vibrate device.The dusting device sucks the flowing dust through the finely carved and screen hole.
    4) When the product flows through Detecting(Sensor or Counting device),Detecting(Sensor or Counting device) can count the number of product.Rail separator and isolation device can be divided into 12 rails.Every rail can be counted by Detecting(Sensor or Counting device)
    5) Detecting(Sensor or Counting device) is composed of 24 rail-valves that can be controlled.The product is got by every rail-vale after counting.
    6) The product fall into the Nozzle by the falling device.
    7) Then fall into the every bottle on the conveyor belt.
    8) The empty bottle is conveyed under the Nozzle by conveyor belt.
    9) The bottle is go on conveying while counting the number of bottle by the Sensor on the rail bar.
    10) The position of bottle is controlled by the Bottle position control device.
    11) If count wrong or find the imperfection bottle,All of them will be delete to Plate of defective bottle.
    12) If the bottle is full in the rail but does not take place in time,the machine will stop at once.
    13) The bottle is full that will be conveyed to next step.
    Other character:
    Medicine powder stop polluted, the main body with tablet count device is airtight, which can stop medicine is polluted and protect electrical parts.

    Easy clean and remove
    Medicine grain flow track perfect level design, which is no power produced and no overlap tablet.

    8- 3 Pill & Capsule & Tablet filling machine 314q

    Medicine grain of detection design,the medicine flow is not touch the 3D electric eye and not shield it, once the 3D electric eye is shielded, the controlling screen is showed and stop machine automatically.
    Each track can be set counting number, it can less than 12 pics.

    8- 3 Pill & Capsule & Tablet filling machine 314 (7)

    Counting in advance
    Remove the problem filled bottle automatically, the industry computer test the count.
    High counting accuracy, the above charterers can ensure 100% accuracy.

    8- 3 Pill & Capsule & Tablet filling machine 314 (8)

    8- 3 Pill & Capsule & Tablet filling machine 314 (9)

    8- 3 Pill & Capsule & Tablet filling machine 314 (10)
